Specifications

Product

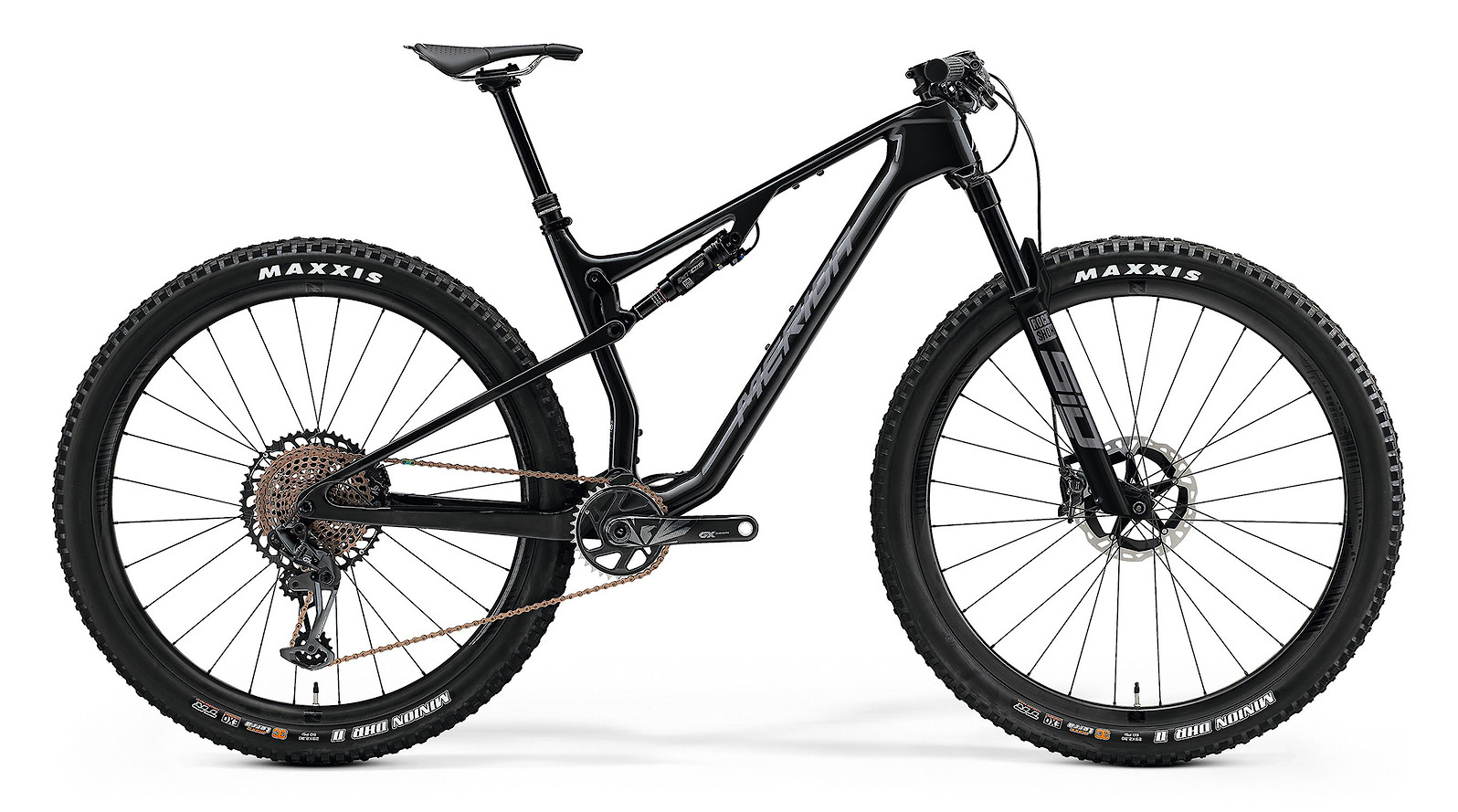

Merida Ninety-Six 7000 Bike
Model Year
2022
Riding Type
Cross Country
Trail
Rider
Unisex
Sizes and Geometry
SM
MD
LG
XL
Wheel Size
29"
Frame Material
Carbon Fiber
Frame Material Details
CF4 III Nano Matrix Carbon front and rear triangles, molded chainstay and down tube protection
Rear Travel
100mm
Rear Shock
FOX FLOAT DPS Performance Elite, remote lockout
Fork
FOX FLOAT 34 Step-Cast (SC) Performance Elite, remote lockout, 44mm offset
Fork Travel
120mm
Head Tube Diameter
Tapered, 1.125" top, 1.5" bottom
Headset
Merida 8151, cartridge bearings
Handlebar
Merida Expert CC, aluminum, flat, 760mm width, 31.8mm clamp diameter
Stem
Merida Team CC II, aluminum, 60mm length, 8° drop, 31.8mm bar clamp
Grips
RockShox TwistLoc
Brakes
Shimano Deore XT, 4-piston front, 2-piston rear, Shimano MT800 CENTER LOCK rotors (180mm front, 160mm rear)
Brake Levers
Shimano Deore XT M8100
Drivetrain
1x
Shifters
Shimano Deore XT M8100, 12-speed
Front Derailleur
None
Rear Derailleur
Shimano Deore XT M8100, 12-speed, SHADOW RD+
ISCG Tabs
None
Chainguide
Upper slider
Cranks
Race Face Next R
Length: 170mm (SM), 175mm (MD-XL)
Chainrings
Race Face Next R, 34 tooth
Bottom Bracket
73mm English/BSA threaded
Pedals
None
Chain
Shimano Deore XT M8100, 12-speed
Cassette
Shimano Deore XT M8100, 12-speed, 10-51 tooth
Rims
Reynolds TR 309/289 XC wheelset, carbon, 30mm (front) and 28mm (rear) inner width, tubeless ready (includes rim tape and valves)
Hubs
Reynolds TR XC wheelset, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver
Spokes
Double-butted stainless steel
Tires
Maxxis Minion DHR II, 3C MaxxTerra, EXO, TR, folding, 29" x 2.3"
Saddle
Merida Expert SL
Seatpost
Merida Expert TR dropper, zero setback, Shimano MT800 remote lever
Drop: 125mm (SM), 150mm (MD), 170mm (LG/XL)
Seatpost Diameter
30.9mm
Seatpost Clamp
Merida Expert, single bolt
Rear Dropout / Hub Dimensions
148x12mm Boost
Max. Tire Size
29" x 2.3"
Bottle Cage Mounts
Two inside front triangle, plus Trail Mount points under top tube
Colors
Metallic Merida Green/Black, Dark Silver/Black/Silver
Warranty

Weight

Miscellaneous
• P-FLEX single pivot flex-stays rear suspension design
• Internal cable routing through headset cap
• Includes Merida multitool with saddlebox attachment
