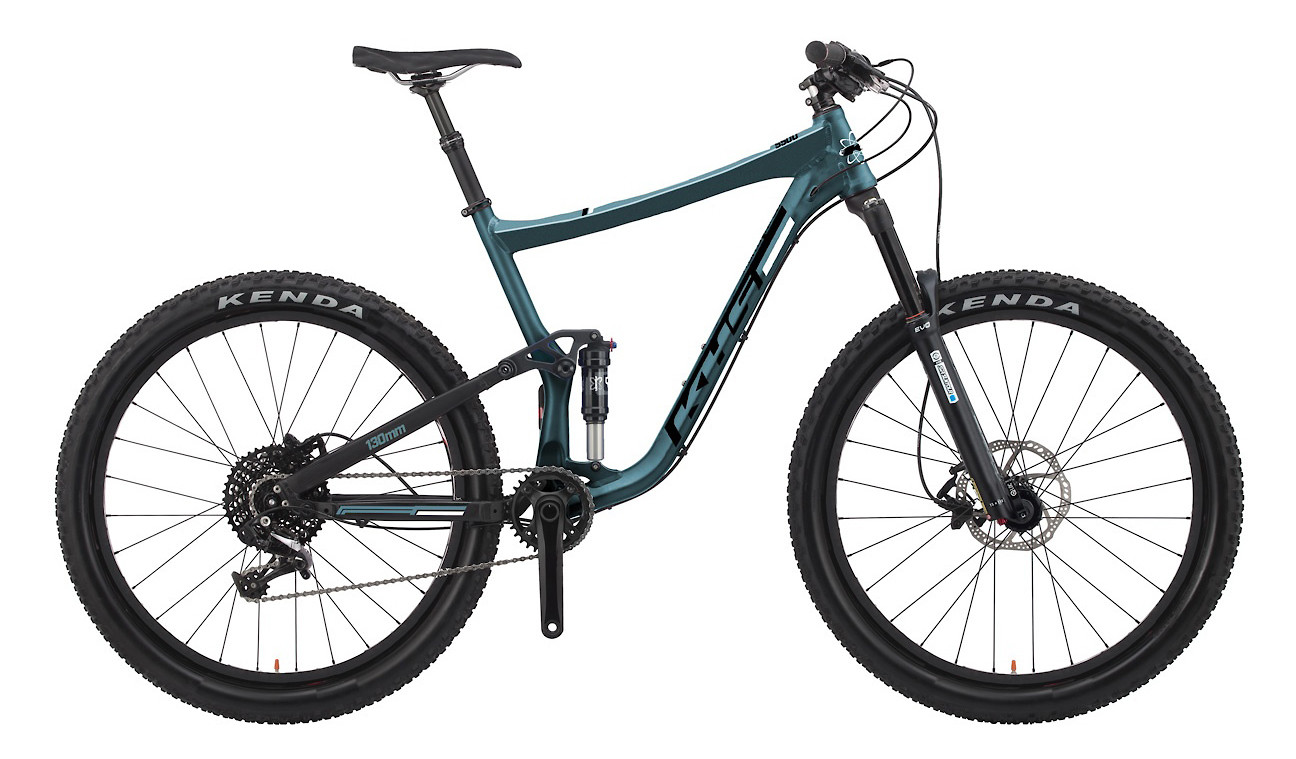

2022 KHS 5500 Bike

Where To Buy
	Free shipping on orders over $50 (continental U.S. only). International shipping available. Some exclusions apply.	Browse available Bikes
	Free shipping on orders over $50 (continental U.S. only). International shipping available. Some exclusions apply.	Browse available Bikes
	Free Delivery on purchases over £20.	Browse available Bikes

Specifications

Product

KHS 5500 Bike

Model Year

2022

Riding Type

Trail

Rider

Unisex

Sizes and Geometry

Size	SM	MD	LG
Top Tube Length	571mm	605mm	636mm
Head Tube Angle	65°	65°	65°
Head Tube Length	100mm	110mm	120mm
Seat Tube Angle	76.0°	76.0°	75.9°
Seat Tube Length	395mm	430mm	470mm
Bottom Bracket Height	342mm	342mm	342mm
Chainstay Length	446mm	446mm	446mm

Standover	798mm	795mm	821mm
Reach	420mm	450mm	478mm
Stack	612mm	621mm	630mm
Additional Info	SM has 27.5" wheels, MD/LG have 29" wheels.

Wheel Size

29"

27.5" (650b)

Frame Material

Aluminum

Frame Material Details

6061 alloy, double-butted custom-formed top tube and down tube

Rear Travel

130mm

Rear Shock

X-Fusion 02 Pro RL, air spring, rebound adjust, lockout

Fork

SR Suntour XCR34 LOR Air, magnesium lowers, hydraulic damping, rebound adjust, lockout

Fork Travel

140mm

Head Tube Diameter

Tapered, 1.125" top, 1.5" bottom

Headset

FSA Orbit 1.5E, zero stack

Handlebar

Aluminum, 780mm width, 15mm rise, 35mm clamp diameter

Stem

Aluminum, 3D forged alloy, 35mm 4-bolt bar clamp

Grips

Q2, lock-on

Brakes

Shimano MT200, 2-piston, Wave 12 rotors (180mm front, 160mm rear)

Brake Levers

Shimano MT200

Drivetrain

Shifters

Shimano Deore M6100, 12-speed, trigger

Front Derailleur

None

Rear Derailleur

Shimano Deore M6100, 12-speed

ISCG Tabs

Chainguide

None

Cranks

SR Suntour Zeron, 2-piece
Length: 170mm (SM), 175mm (MD/LG)

Chainrings

SR Suntour Zeron, Zig-Zag profile, 30 tooth

Bottom Bracket

SR Suntour, outboard cartridge bearing

Pedals

None

Chain

Shimano Deore M6100, 12-speed

Cassette

Shimano Deore M6100, 12-speed, 10-51 tooth

Rims

WTB ST i35 (SM) or i29 (MD/LG) TCS, double wall, 32 hole, tubeless ready

Hubs

Formula, sealed bearings, 10x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver

Spokes

14g stainless steel, alloy nipples

Tires

Kenda Regolith Pro, 120 TPI, folding, tubeless ready, 27.5" x 2.6" (SM) or 29" x 2.4" (MD/LG)

Saddle

WTB Volt Medium SL

Seatpost

KS Exa-Form KSP-900-i Integra dropper

Seatpost Diameter

31.6mm

Seatpost Clamp

Single bolt

Rear Dropout / Hub Dimensions

148x12mm Boost

Max. Tire Size

Bottle Cage Mounts

One inside front triangle

Colors

Deep Teal

Warranty

2 years frame, 1 year parts/components

Weight

Miscellaneous

• 4-Bar Horst Link rear suspension design
• External cable routing with internal dropper seatpost routing
