Specifications

Product

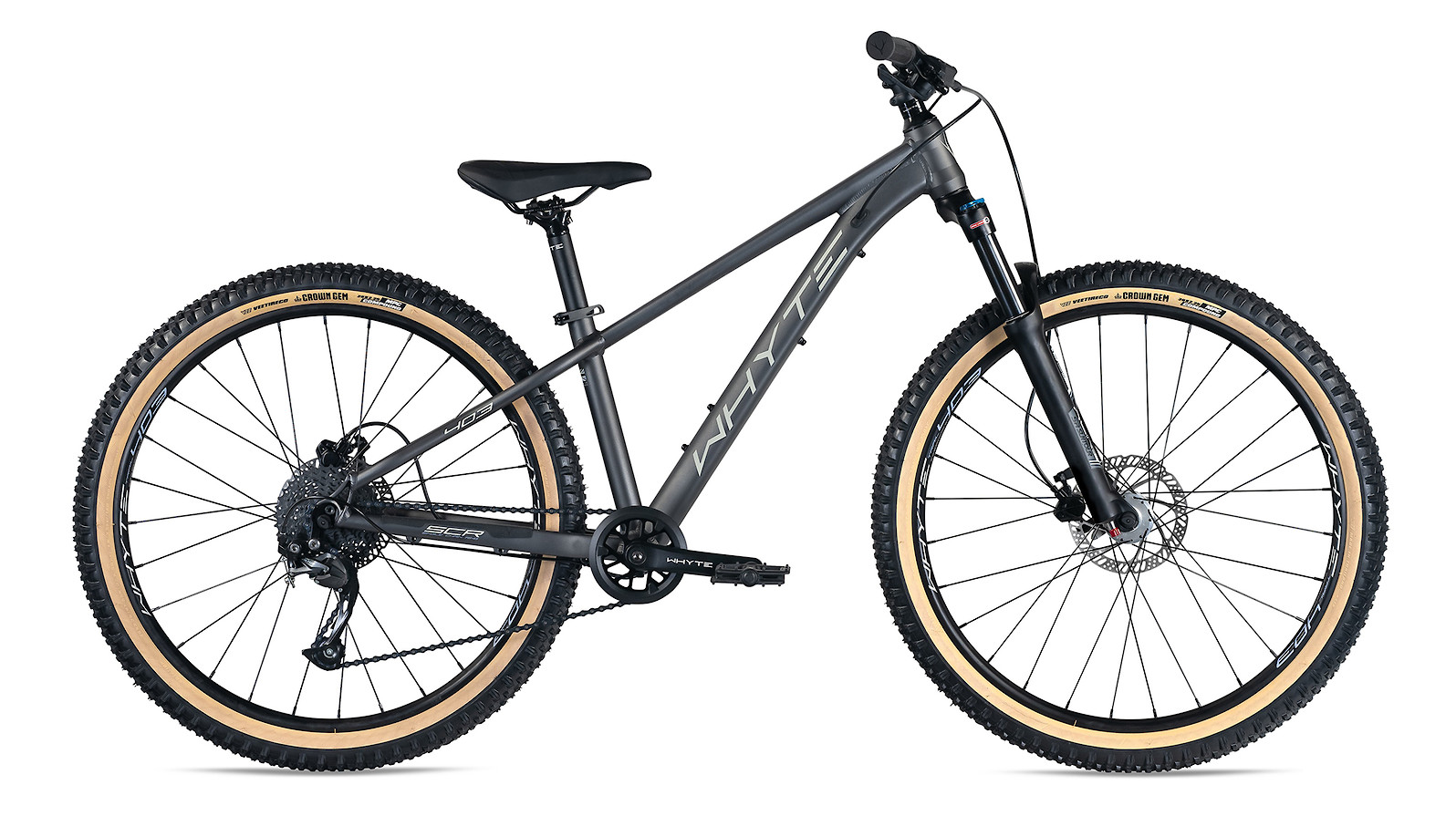

Whyte 403 V3 Bike

Model Year

2022

Riding Type

Cross Country

Trail

Rider

Kids

Sizes and Geometry

One Size

Size	One Size
Top Tube Length	520mm
Head Tube Angle	66.5°
Head Tube Length	95mm
Seat Tube Angle	76°
Seat Tube Length	331mm
Bottom Bracket Height	295mm
Chainstay Length	410mm
Wheelbase	1057mm
Standover	706mm
Reach	380mm
Stack	560mm
Additional Info	Intended for riders roughly 4'5" to 5'0" (135-152cm) tall

Wheel Size

26"

Frame Material

Aluminum

Frame Material Details

6061-T6 multi-butted hydroformed aluminium alloy, molded chainstay protection

Rear Travel

Hardtail

Rear Shock

None

Fork

SR Suntour XCR, air spring, hydro lockout, rebound adjust

Fork Travel

100mm

Head Tube Diameter

Straight, 1.125"

Headset

Feimin H807B, semi-integrated, caged bearings

Handlebar

Whyte, 6061 alloy, 660mm width, 25mm rise, 31.8mm clamp diameter

Stem

Whyte, alloy, 35mm length, 31.8mm bar clamp

Grips

Whyte V, lock-on

Brakes

Tektro HD-M275, 2-piston, 160mm rotors

Brake Levers

Tektro HD-M275

Drivetrain

Shifters

Shimano Altus M2010, 9-speed, trigger

Front Derailleur

None

Rear Derailleur

Shimano Altus M2000, 9-speed, SGS cage

ISCG Tabs

None

Chainguide

None

Cranks

6061 alloy, 152mm length

Chainrings

28 tooth, narrow/wide, with chainguard

Bottom Bracket

Square taper, cartridge bearings, 73mm

Pedals

Fiber-reinforced composite platform

Chain

SunRace, 9-speed

Cassette

SunRace CSM90, 9-speed, 11-36 tooth

Rims

Whyte Trail, 28 hole

Hubs

Alloy, double sealed cup and cone bearings, HG driver

Spokes

2.0mm, PG, stainless steel, brass nipples

Tires

VEE Tire Co. Crown Gem, 26" x 2.25"

Saddle

Whyte Jr Mid Custom

Seatpost

Whyte, 6061 alloy, 15mm offset, 300mm length, 2-bolt head

Seatpost Diameter

30.9mm

Seatpost Clamp

Quick release

Rear Dropout / Hub Dimensions

Max. Tire Size

Bottle Cage Mounts

One inside front triangle

Colors

Cement Gloss Khaki/Sand, Matte Granite Grey/Mist

Warranty

4 years frame with registration

Weight

Miscellaneous

• Internal cable routing
• Intended for riders roughly 4'5" to 5'0" (135-152cm) tall
• UK price: 699 GBP
